Introduction

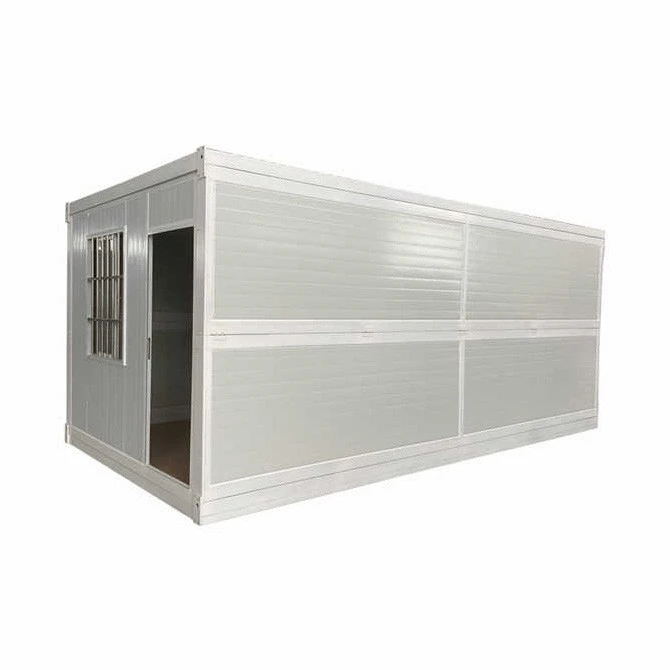

Foldable container houses are foldable, easy-to-transport temporary housing suitable for construction site accommodation, emergency rescue, post-disaster reconstruction, and field work.
Configuration
| Part Name | Name | Unit | QTY | Remarkers | |
| The main frame is 2.5mm | The top frame | 2.5mm galvanized formed beam, galvanized content 80g/㎡, 170 width and 5633mm length | PCS | 2 | Size: 6055*2990*2896 mm Folded size: 6055*2990*580 mm |
| 2.5mm galvanized formed beam, galvanized content 80g/㎡, 170 width and 2688mm length | PCS | 2 | |||
| Galvanized C80*1.2mm cross brace, galvanized content 80g/㎡ | PCS | 7 | |||
| 30*30*1.0mm galvanized square pipe, galvanized content 80g/㎡, top guide rail | PCS | 2 | |||
| The bottom frame | 2.5mm galvanized formed beam, galvanized content 80g/㎡, 160 width and 5633mm length | PCS | 2 | ||
| 2.5mm galvanized formed beam, galvanized content 80g/㎡, 160 width and 2688mm length | PCS | 2 | |||
| Lower beam angle steel flashing, 5633mm | PCS | 2 | |||
| Lower beam angle steel flashing, 2688mm | PCS | 2 | |||
| Galvanized 50*100*1.2mm square tube galvanized cross brace, galvanized content 80g/㎡ | PCS | 9 | |||
| Flashing base sink piece, 5633mm | PCS | 2 | |||
| Flashing base sink piece, 2688mm | PCS | 2 | |||
| Uprights | 2.5mm galvanized column, galvanized content 80g/㎡ 210 wide, 150 wide and 2520mm high | PCS | 4 | ||
| The connector is 2.0mm, and the galvanized content is 80g/㎡ | PCS | 8 | |||
| L-shaped column stiffeners | PCS | 8 | |||
| Hanging head | 7mm corner piece, galvanized content 80g/㎡, 210mm high and 170 wide | PCS | 4 | ||
| 7mm corner piece, galvanized content 80g/㎡, 165mm high and 150 wide | PCS | 4 | |||
| Color | Paint (electrostatic spraying) | SET | 1 | ||
| Bolt | Hexagon (galvanized) | PCS | 48 | ||
| Roof | Single-watt capping | 0.4mm color steel single tile, 360 degree occlusion, special waterproof method | SET | 1 | |
| Downpipes | Downpipes | 50 Downpipes | PCS | 4 | |
| Ceiling insulation | moistureproof | Moisture-proof film, PE resin film 1.0mm | PCS | 1 | |
| 75 glass wool | 75mm glass silk cotton insulation quilt 14kg/m³ | ||||
| Ceiling | Ceiling tiles | 0.3 thick, 831 color steel ceiling plate | SET | 1 | |
| Floor | Fiberglass cement | 18mm thick, 1177*2820mm | PCS | 5 | |
| Floor decoration | floor leather | 1.6mm, floor leather | SET | 1 | |
| Interior decoration | yin angle line | Color steel yin angle line, white ash | PCS | 4 | |
| Door | High steel doors | 970*1970 (950 type wall panel) fireproof lock | SET | 1 | |
| Window | Double glass plastic steel window | Double glass plastic steel window | SET | 2 | |
| Auxiliary materials | Auxiliary materials | Screws, sealants | SET | 1 | |
| Electric | Standard electrical distribution | Industrial socket box + industrial socket 32A (1 set) Distribution box J-8 (1 pc), leak protection (32A) empty opening 32A (1 pc), 1 x 3 holes, 2 x 5 holes, 1 switch, 2 bar lights. The main line is 4 square meters, the air conditioner is 4 square meters, the socket is 2.5 square meters, and the light line is 1.5 square meters | SET | 1 | |
| Wall panels | Duplex 0.35 (Type 950) | 50mm rock wool composite board, double-sided iron sheet 0.35/0.35mm double-sided orange peel pattern bulk weight 70kg/m³ laminated | SET | 1 | |
Advantages
High-Strength Structure
Foldable container houses utilize a Q235 steel frame that can withstand impact forces up to 6,000 Newtons and remain intact even in force 12 winds.
Corrosion Resistance
Foldable container homes utilize galvanized steel. The galvanized coating effectively prevents moisture and air from contacting the steel, reducing rust and corrosion and extending the lifespan of the home to over 10 years.
Easy Installation
Folding container houses are easy to install. First, unfold the house and then fix the components with bolts. The whole process only takes 1-2 hours to complete.
Product Customization
Customizable Size
Foldable container homes can be flexibly customized to meet your needs, with adjustable length, width, and height.
Custom Color
Standard colors include white, gray, blue, and green, and other colors can be customized upon request.
Customizable Exterior Wall Materials
Material options include color-coated steel plates, aluminum alloy panels, or sandwich panels.
Customizable Insulation Materials
Customers can choose from a variety of insulation materials, such as polyurethane foam, rock wool, and glass wool.
Customized Doors and Windows
Customers can choose from a variety of door and window types, including single-leaf, double-leaf, sliding, and folding doors. Windows can be either sliding or fixed.
Why Choose Us
Production Capacity
Our factory is equipped with laser cutting machines, CNC bending machines, gantry welding machines, and automated assembly lines, capable of producing over 5,000 container homes annually.
Technical Team
Our team of over 30 workers, each with at least three years of experience, are proficient in welding, assembly, and electrical installation. We rigorously control every step of the production process to ensure our products meet industry standards.
Various Products
We specialize in the research, development, and manufacturing of prefabricated homes, including soundproof office pods, apple pods, removable containers, fixed containers, and steel structure buildings.
FAQ
Q: How are foldable container houses transported?
A: When folded, the home's dimensions are comparable to a standard container, allowing for direct shipping by sea or land, making it convenient for large-scale export.
Q: Does the wall material provide thermal and sound insulation?
A: The walls are filled with insulation boards, which effectively insulate and soundproof, making them suitable for both cold and hot regions.
Q: What does after-sales service include?
A: We offer a 1-3 year quality guarantee covering structural parts and major components, as well as remote installation guidance and parts replacement services.
Q: Can you place sample orders?
A: Yes, we accept single-set sample orders to allow customers to verify product quality and ease of installation.
Q: How long does it take to ship after a customer places an order?
A: Standard in-stock orders ship within 7-10 days. Customized colors, layouts, or configurations require approximately 3-4 weeks of production.
Q: How can I obtain spare parts after the warranty expires?
A: Even after the warranty expires, we provide standard spare parts and repair guidance to ensure continued use.
